Budenberg offers wide range of Industrial Pressure Gauges, Diaphragm Seal Gauges, Schaffer Diaphragm Gauges, Differential Pressure Gauges, Watertight Oil filled HT Cable Gauges and Pressure Gauges for special applications.

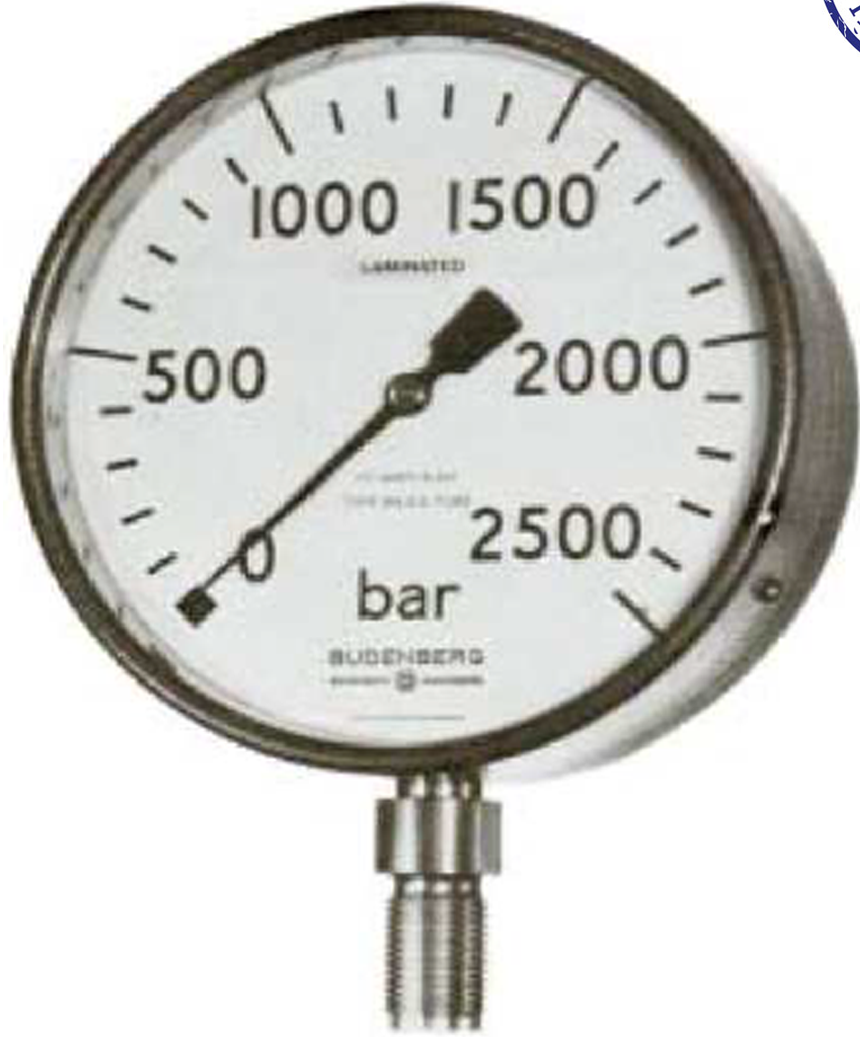

Models 964GP and 564GP are for use on high pressure applications such as hydraulic power packs and pressure testing equipment.
These are also suitable for pressure measurements on hydraulic metal forming, sintering and autofrettage chemical processes.
Both 964GP and 564GP meet the American Petroleum Institute Specification 14D.
The gauges incorporates a solid baffle wall and blow out back for operator protection and standard feature such as IP65 protection as defined in EN 60529. The gauges have white Anodised Aluminium dials marked in black finish with Stainless steel black coloured pointer.
Specifications
Dial Sizes
150 mm (6″) Model 964GP
250 mm (10″) Model 564GP
Mounting
Direct, Surface and Flush
Case & Bezel
964GP has 316 Stainless Steel Case and Bezel
564GP has Aluminium Case and Stainless Steel Bezel.
Scale Ranges
0 – 1600 bar up to 4000 bar (60,000 lb/in²) or equivalent pressure units
Other equivalent units of pressure / vacuum is available with single or dual scale
Pressure Element
316 Stainless Steel Coil & Socket
Movement
Stainless Steel Construction with option of Viscous Damped movement to overcome the effects of minor pressure pulsations.
Connections
Direct mounting 1/2″ BSP with length of 32mm (1.25″) with a flat endface and 3mm (0.125″) inlet
Other connections are available upon request
Accuracy Class
1.0% of fsd as defined in EN837-1 ; Optionally 0.5% of fsd as defined in EN837-1
Electrical Contacts (Optional)
Up to two independently settable electric contacts, each can have a different model of operation
Temperature
Operating: -20°C to 90°C ; Storage: -40°C to 100°C
Lower and Higher operating temperatures are available
Certification
All Gauges are individually tested. A certificate of Conformity is supplied free of cost.
Calibration / Test Certificate and material certificate to BS EN10204 3.1B is supplied, if ordered separately.
The 566GP are designed for Naval and Marine applications in accordance with Def Stan 66-2. This gauge has been designed to withstand high level of shock and are all manufactured in accordance with EN837-1.
Variants include an oil free pressure gauge clean for OXYGEN duty with the dial marked accordingly.
Specifications
Dial Sizes
63 mm (2.25″), 100 mm (2″) and 150 mm (6″)
Mounting
Direct, Surface and Flush (3 hole or clamp), 63 mm available in 3 Hole fixing only in Flush Mounting.
Case & Bezel
Die Cast Aluminium Case, with a solid baffle partition wall and full blow out back. Powder coated brass bezel. IP67
Scale Ranges
0 – 400 mbar up to 1400 bar (20,000 lb/in²) or equivalent pressure units
Other equivalent units of pressure / vacuum is available with single or dual scale
Pressure Element
316 Stainless Steel tube/Coil & Socket
Overloads
Overload & vacuum stops up to 130% are fitted on the movement
Option: Mechanical overload clamps fitted internally to withstand overload up to 300% of maximum scale reading
Movement
Stainless Steel Construction with option of Viscous Damped movement to overcome the effects of minor pressure pulsations.
Connections
1/4″, 3/8″, 1/2″ BSP male and 1/2″ NPT male (Other thread sizes and connection types are available)
Accuracy Class
1.0% of fsd as defined in EN837-1 ; Optionally 0.5% of fsd as defined in EN837-1
Electrical Contacts (optional)
Up to two independently settable electric contacts, each can have a different model of operation
Temperature
Operating: -20°C to 90°C ; Storage: -40°C to 100°C
Lower and Higher operating temperatures are available
Certification
All Gauges are individually tested. A certificate of Conformity is supplied free of cost.
Calibration / Test Certificate and material certificate to BS EN10204 3.1B is supplied, if ordered separately.
The 566 are designed for applications where a large Dial, 8″ or 10″, is required for distant reading, such as top of the boilers, etc. They are available as standard in Aluminium case with solid baffle partition wall and full blow out back and powder coated brass bezel.
Variants include an oil free pressure gauge clean for OXYGEN duty with the dial marked accordingly.
Specifications
Dial Sizes
200 mm (8″) and 250 mm (10″)
Mounting
Direct, Surface and Flush (3 hole or clamp)
Scale Ranges
0 – 1 bar up to 1400 bar (20,000 lb/in²) or equivalent pressure units
Other equivalent units of pressure / vacuum is available with single or dual scale
Pressure Element
316 Stainless Steel tube/Coil & Socket
Overloads
Overload & vacuum stops up to 130% are fitted on the movement
Option: Mechanical overload clamps fitted internally to withstand overload up to 300% of maximum scale reading
Movement
Stainless Steel Construction with option of Viscous Damped movement to overcome the effects of minor pressure pulsations.
Connections
3/8″, 1/2″ BSP male and 1/2″ NPT male (Other thread sizes and connection types are available)
Accuracy Class
1.0% of fsd as defined in EN837-1 ; Optionally 0.5% of fsd as defined in EN837-1
Electrical Contacts (optional)
Up to two independently settable electric contacts, each can have a different model of operation
Temperature
Operating: -20°C to 90°C ; Storage: -40°C to 100°C
Lower and Higher operating temperatures are available
Certification
All Gauges are individually tested. A certificate of Conformity is supplied free of cost.
Calibration / Test Certificate and material certificate to BS EN10204 3.1B is supplied, if ordered separately.

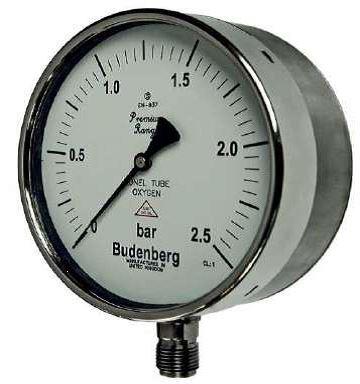

The 950GP is a specially designed Pressure Gauges for Oxygen application. Embodying an all 316 Stainless Steel case and bezel construction, the gauge incorporates a solid baffle wall and blow out back for operator protection and standard features such as IP67 environmental protection , not normally available on comparative units.
Specifications
Dial Sizes
100 mm (4″) and 150 mm (6″)
Mounting
Direct, Surface and Flush (3 hole or clamp)
Case & Bezel
Full Safety Pattern case to S3 standard Pointer with a solid baffle partition wall and full blow out back.
Model 950GP has 316 Stainless steel case and Bezel
Model 550GP has Aluminium Case & powdered coated brass bezel
Scale Ranges
0 – 600 mbar up to 1400 bar (20,000 lb/in²) or equivalent pressure units
Other equivalent units of pressure / vacuum is available with single or dual scale
Pressure Element
Monel tube and Socket
Overloads
Overload & vacuum stops up to 130% are fitted on the movement
Option: Mechanical overload clamps fitted internally to withstand overload up to 300% of maximum scale reading
Movement
Stainless Steel Construction with option of Viscous Damped movement to overcome the effects of minor pressure pulsations.
Connections
1/4″, 3/8″, 1/2″ BSP male and 1/2″ NPT male (Other thread sizes and connection types are available)
Accuracy Class
1.0% of fsd as defined in EN837-1 ; Optionally 0.5% of fsd as defined in EN837-1
Electrical Contacts (optional)
Up to two independently settable electric contacts, each can have a different model of operation
Temperature
Operating: -20°C to 90°C ; Storage: -40°C to 100°C
Lower and Higher operating temperatures are available
Certification
All Gauges are individually tested. A certificate of Conformity is supplied free of cost.
Calibration / Test Certificate and material certificate to BS EN10204 3.1B is supplied, if ordered separately.
The Model 202 Rubber Capsule encompasses impressive technical specifications and wide range of standard features and by fitting the Premium Gauge with the suitable Viton Sac, the pressure gauge can be used to measure pressures of media that would normally block the inlet of a normal pressure gauge.
Typical applications are effluent disposal, solidifying media such as fatty foodstuff, and grout. paper stock is renowned for blocking instrumentation, and is a simple solution.
The gauge has one piece full safety pattern case with a solid baffle partition wall and full blow out back manufactured in 1.6mm think 316L Stainless Steel. The standard feature include white Anodised Aluminium dial marked in black finish with Stainless steel black coloured pointer and IP67 protection as defined in EN 60529.
Specifications
Dial Sizes
100 mm (4″) and 150 mm (6″)
Mounting
Direct
Scale Ranges
0 – 1 bar up to 80 bar or equivalent pressure units
Other equivalent units of pressure / vacuum is available with single or dual scale
Pressure Element
316 Stainless Steel tube & Socket
Overloads
Overload & vacuum stops up to 130% are fitted on the movement
Option: Mechanical overload clamps fitted internally to withstand overload up to 300% of maximum scale reading
Movement
Stainless Steel Construction with option of Viscous Damped movement to overcome the effects of minor pressure pulsations.
Connections
3/8″, 1/2″ BSP male (Other thread sizes and connection types are available)
Other connections are available upon request
Accuracy Class
1.0% of fsd as defined in EN837-1 ; Optionally 0.5% of fsd as defined in EN837-1
Temperature
Operating: -20°C to 50°C ; Storage: -40°C to 100°C
Lower and Higher operating temperatures are available
Certification
All Gauges are individually tested. A certificate of Conformity is supplied free of cost.
Calibration / Test Certificate and material certificate to BS EN10204 3.1B is supplied, if ordered separately.
The Model 269 is a high specification vacuum gauge specifically designed for the estimation of the intensity of vacuum in a food can. Using an ordinary vacuum gauge fitted with a piercer is usually very inaccurate and does not allow for the dilution of the head space vacuum by entry of air at atmosphere from the gauge. Ordinary vacuum gauge therefore always give a lower reading than the vacuum existed in the head space before the can was pierced, and if the head space is small the error is compounded.
This gauge was developed by the British Food Manufacturing Industries Research Association and it overcomes the disabilities in an ingenious manner.
The gauge has one piece Polycarbonate case The standard feature include white Anodised Aluminium dial marked in black finish with Stainless steel black coloured pointer and IP67 protection as defined in EN 60529.
Specifications
Dial Sizes
63 mm (2.5″)
Mounting
Direct
Scale Ranges
0 – 30″Hg vacuum
Pressure Element
316 Stainless Steel tube & Socket
Movement
Stainless Steel Construction
Connections
316L Stainless Steel Piercing needle inside rubber ferrule.
Accuracy Class
1.0% of fsd as defined in EN837-1
Temperature
Operating: -20°C to 90°C ; Storage: -40°C to 100°C
Lower and Higher operating temperatures are available
Certification
All Gauges are individually tested. A certificate of Conformity is supplied free of cost.
Calibration / Test Certificate isupplied, if ordered separately.
The model 511 & 512 Watertight High Voltage cable Gauges have to continually operate in the remote severe environments where robustness coupled with repeatability are paramount.
These gauges are designed to meet many International and regulatory standards including ESI 50-1 that requires the gauges to be fully immersible under water and are Type Tested to industry standard NGTS 3.5.9 Issue 2. The Certification is available upon request
Units can be supplied fitted with up to three electrical contacts whose operation can be independently defined and adjusted by use of a removable key. Electrical connections are taken via a three metre PVC insulated and sheathed cable from the side of the case, the wires are colour coded for ease of installation.
The standard feature include white Anodised Aluminium dial marked in black finish with Stainless steel black coloured pointer and IP68 protection as defined in EN 60529.
General Specifications
Dial Sizes
Model 511 : 100 mm (4″) and Model 512 : 150 mm (6″)
Mounting
Direct / Surface
Case & Bezel
Machined Solid aluminium, grey polyester powder coated with back flange and Acrylic Plastic Window
Scale Ranges
0 – 1 bar up to 25 bar
Dual scale or custom scales are available upon request
Pressure Element
Phosphor Bronze seamless bourdon tube, with brass body and connection
Overloads
Up to 130% of maximum scale range
Movement
Stainless Steel
Connections
3/8″ BSP pipe fitting (Other connections are available upon request)
Accuracy Class
1.0% of fsd as defined in EN837-1 ; NGST 3.5.9 issue 2 Type Tested.
Electrical Contacts (optional)
Up to three independently settable electric contacts, each can have a different model of operation
Temperature
Operating: -20°C to 90°C ; Storage: -40°C to 100°C
Lower and Higher operating temperatures are available
Model Code
Model 511-4-AL-2 : Watertight Pressure Gauges for HV Power Cable, 4″ dial size, Double contact with 5-wire 3 metre cable.
Model 512-6-AL-2 : Watertight Pressure Gauges for HV Power Cable, 6″ dial size, Double contact with 5-wire 3 metre cable.
Model 512-6-AL-3 : Watertight Pressure Gauge for HV Power Cable, 6″dial size, Triple contact with 7-wire 3 metre Cable.
Certification
All Gauges are individually tested. A certificate of Conformity is supplied free of cost. Calibration / Test Certificate is supplied, if ordered separately.
Pressure Gauge Syphons
The Syphons are designed to meet the demand for protection of instruments such as pressure gauges, where the application have high temperatures that can cause damage or inaccurate readings due to elevated temperatures. They collect condensate from the high temperature media which prevents direct contact with the pressure elements and dissipates the heat. Suitable for all media resistant to SS316.
Swivel Adaptor
The Budenberg Swivel Adaptor is designed for the ease of design and installation of Pressure Gauges and other instrumentation where positional orientation can be determined on site. They are ideal for connection of Pressure Gauges to Valves, and aids the ease of installation especially of Differential instruments. Suitable for all media that is resistant to 316 St.St. Working temperature is up to 400°C.
Viscous Damped Movement
The Budenberg VDM is used to overcome the effects of vibration and pulsation. It is used in place of glycerine filling which increases the weight of the Gauge that puts extra strain on installation. VDM applied damping to the movement mechanism at two key operational points, hence keeps gauge clean. Gauge that are fitted with VDM can be easily calibration than glycerine filled gauges.
Gauge Saver (OVP Valve)
The Budenberg Over range Protection (OVP) Valve or Gauge Saver has been primarily designed to Pressure Gauges or other instruments against over pressure conditions, either designed or accidental due to failure of other systems. The unit can be fitted directly to the instrument to be protected on any clean, non-viscous fluids or gases that are compatible with chosen materials of construction.
Adjustable Snubber
The Budenberg Adjustable Snubber is designed to meet the demand for protection of Pressure Gauges, where the applications have rapid pulsations or sudden hydraulic shock loading that can damage them. The level of damping is by the adjustment of the needle valve that restricts the flow and therefore protects the pressure gauge against pulsations. Working temp. is up to 120°C.
Check Valve
The Budenberg Check Valve has been designed to meet the demand from applications where high pressures and arduous duties are standard. The valve permits gases and liquids to flow only in one direction, thus preventing the process flow from reversing. The process flow in the desired direction opens the valve, and during the reverse flow the poppet is forced back into its seat closing the Valve.
